Pumping stations

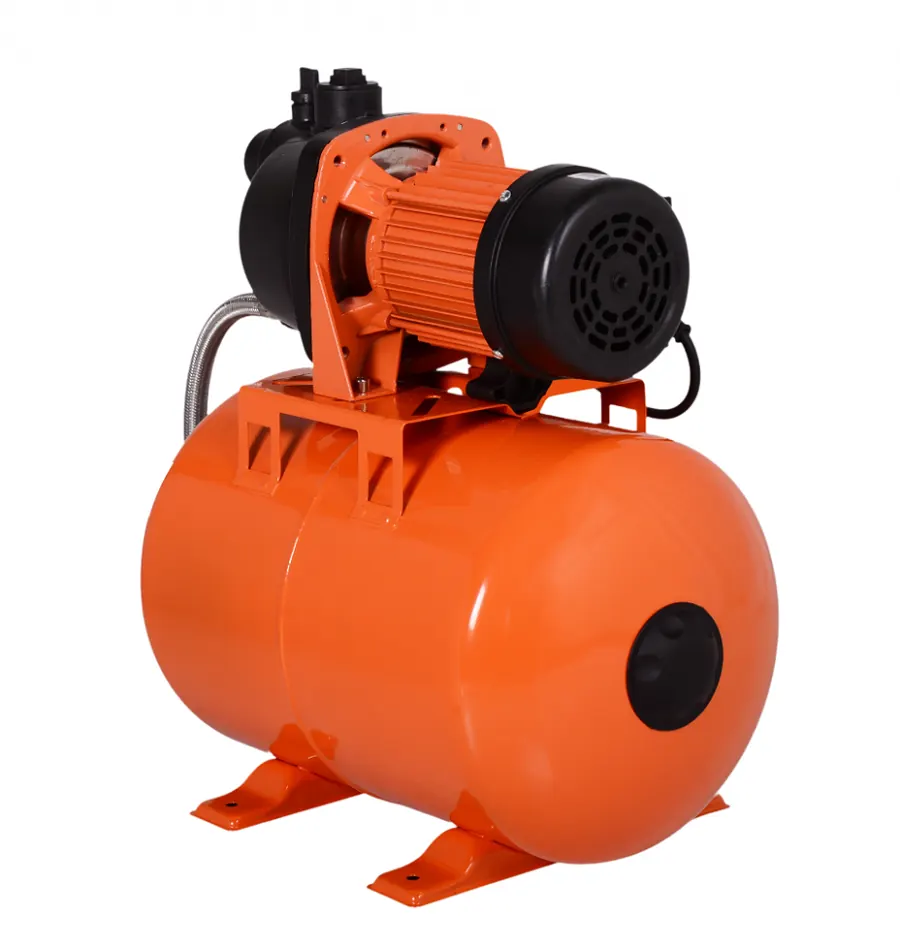

Vihr ASV-70/40 P-20
This pumping station is a convenient and reliable solution for providing constant access to water in cottages, country houses and other facilities where an independent source of water supply is required. Thanks to a 1200–watt pump, the station creates a head of up to 40 m, ensuring water supply even over long distances or heights. The maximum capacity of the station is 70 l/min, which makes it suitable for meeting the needs of medium and large households. The inlet and outlet openings have a standard size of 1 inch, which makes it easy to connect to existing water supply systems and easy to install. The pump pumps water from a depth of up to 9 m, so it can be used with wells and boreholes.
Characteristics
Mains voltage, V | 220-230 |
Mains frequency, Hz | 50 |
Power, W | 1200 |
Maximum productivity, l/min | 70 |
Inlet and outlet diameter, inch | one |
Maximum suction depth, m | 9 |
Pump body material | Plastic |
Hydraulic battery capacity, l | twenty |
Permissible concentration of solid particles in pumped water, g/m³ | 150 |
Packing dimensions | 0.345 × 0.215 × 0.328 m |
Weight, kg | 9.65 kg |
