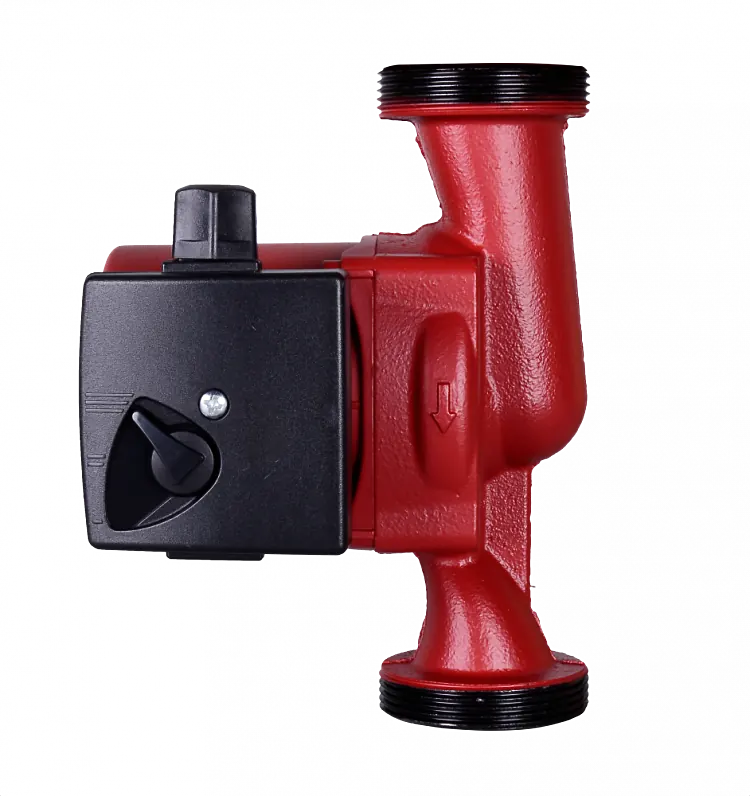

Circulation pump Vihr C-32/4 STANDARD

Characteristics

Mains voltage, V	220-230
Mains frequency, Hz	50
Power, W	36/53/72
Head, m	2/3/4
Maximum productivity, l/min	50
Maximum pressure in the system, bar	10
Protection class	IP44
Insulation class	H
Temperature class	TF 110
Pump cover material	Cast iron
Engine body material	Aluminum
Thread size on the pump, inch	2
Adapter nut size, inch	1 1/4
Guarantee	1 year
Weight, kg	3.078 kg
Packing dimensions	0.14 × 0.13 × 0.195 m
