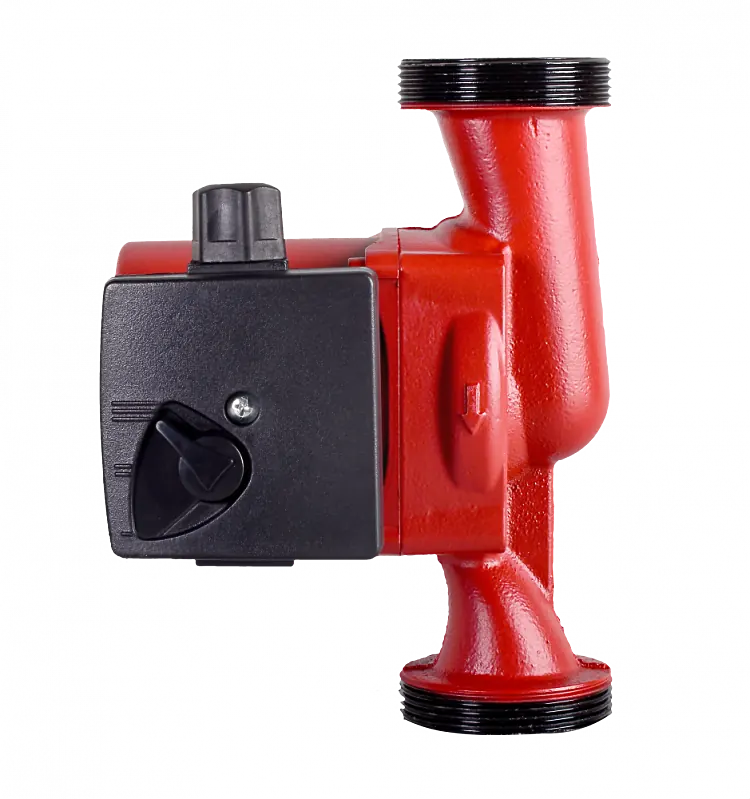

Circulation pump Vihr C-32/6 STANDARD

Characteristics

Main characteristics:

Mains voltage, V	220-230
Mains frequency, Hz	50
Power, W	40/60/90
Head, m	3/5/6
Maximum productivity, l/min	50
Maximum pressure in the system, bar	10
Protection class	IP44
Insulation class	H
Temperature class	TF 110
Pump cover material	Cast iron
Engine body material	Aluminum
Thread size on the pump, inch	2
Adapter nut size, inch	1 1/4
Guarantee	1 year
Packing dimensions	0.14 × 0.13 × 0.195 m
Weight, kg	3.304 kg
