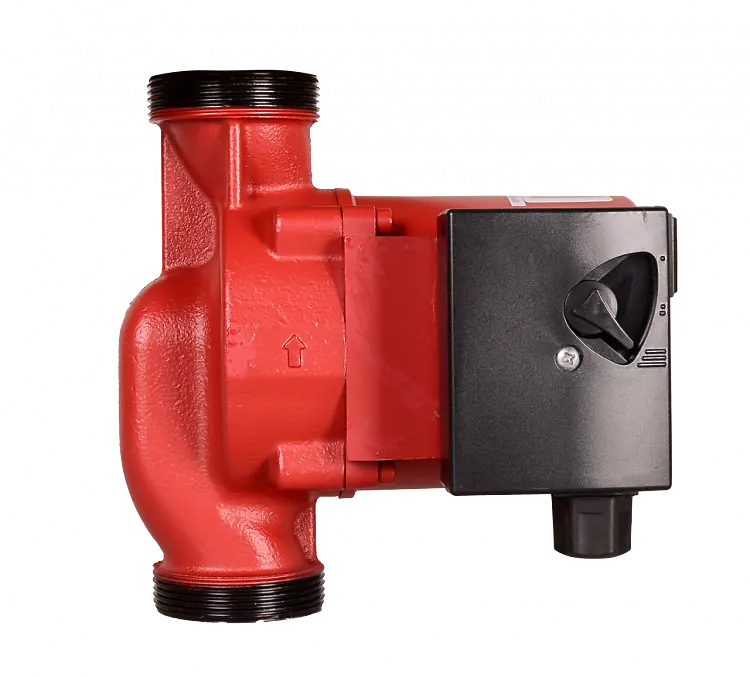

Circulation pump Vihr C-32/8 STANDARD

Characteristics


Mains voltage, V 220-230
Mains frequency, Hz 50
Power, W 145/220/245
Head, m 5/7/8
Maximum productivity, l/min 170
Maximum pressure in the system, bar 10
Protection class IP44
Insulation class H
Temperature class TF 110
Pump cover material Cast iron
Engine body material Aluminum
Thread size on the pump, inch 2
Adapter nut size, inch 1 1/4
Guarantee 1 year
Weight, kg 5.453 kg
Packing dimensions 0.195 × 0.195 × 0.195 m
