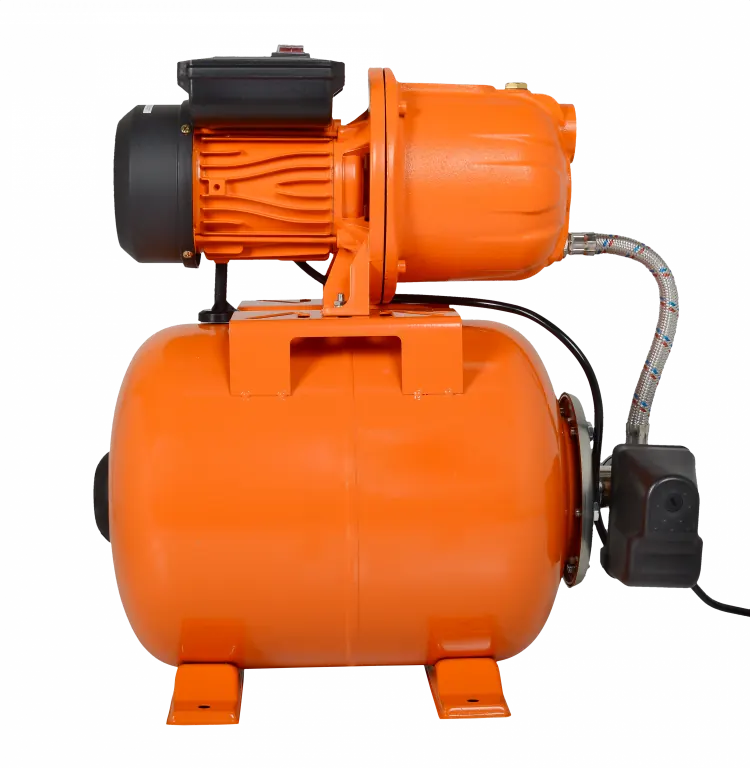

Pumping station VIHR ASV-800/20CH

This pumping station is designed for uninterrupted water supply in automatic mode. At the same time, it automatically maintains the required pressure in the water supply system, independently switching on and off as water gets consumed.

Characteristics


Mains voltage, V 220-230
Mains frequency, Hz 50
Power, W 800
Pump type Centrifugal
Maximum water lifting height, m 40
Maximum productivity, l/min 60
Inlet and outlet diameter, inch one
Maximum suction depth, m 9
Pump body material Cast iron
Hydraulic battery capacity, l twenty
Permissible concentration of solid particles in pumped water, g/m³ 150
Guarantee 1 year
Weight, kg 13.76 kg
Packing dimensions 0.455 × 0.507 × 0.278 m
