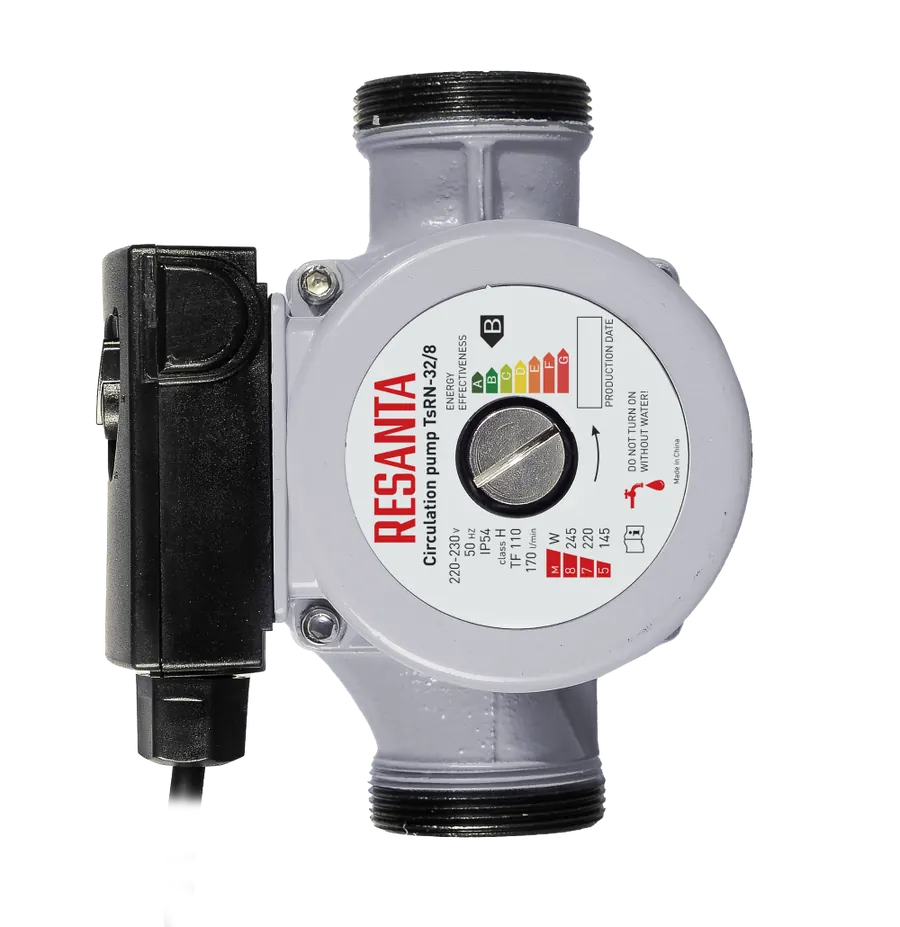

Resanta TsRN-32-8

Circulation pumps are designed to circulate water in heating systems

Characteristics

Mains voltage, V	220-230
Mains frequency, Hz	50
Power, W	145/220/245
Head, m	5/7/8
Maximum flow, l/min	170
Maximum pressure in the system, bar	10
Degree of protection	IP54
Insulation class	H
Temperature class	TF 110
Pump cover material	Cast iron
Engine body material	Aluminum
Thread size on the pump, inch	2
Adapter nut size, inch	1 1/4
Power cable, m	one
Guarantee	5 years
Weight, kg	2.688 kg
Packing dimensions	1.655 × 1.655 × 1.655 m
