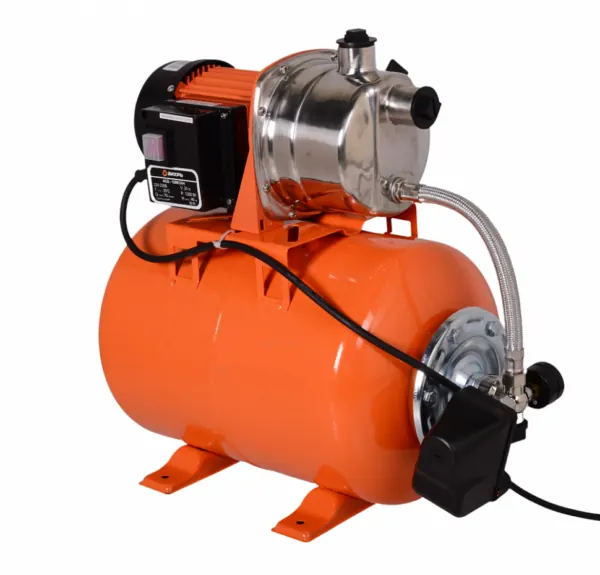

VIHR ASV-1200-24H

This pumping station is designed for uninterrupted water supply in automatic mode. At the same time, it automatically maintains the required pressure in the water supply system, independently switching on and off as water gets consumed.

Characteristics

Supply network voltage, V 220-230
Power supply frequency, HZ 50
Power, W 1200
Pump type Centrifugal pump
Maximum water lifting height, m 45
Maximum capacity, l / min 70
Diameter of inlet and outlet openings, in 1
Maximum suction depth, m 9
Pump body material Cast iron
Hydraulic battery capacity, l 24
Permissible concentration of solid particles in the pumped water, g / m3 150
Guarantee 1 year
Weight, kg 15.2 kg
Package dimensions 0.53 × 0.51 × 0.28 m
