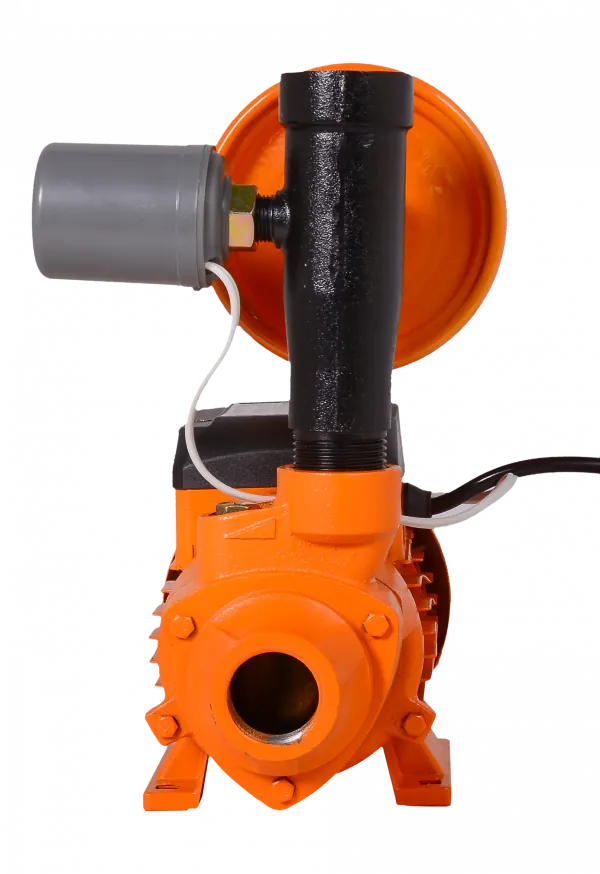

VIHR ASV-370 – 20H pumping station
Characteristics
| Supply network voltage, V | 220-230 |
| Power supply frequency, HZ | 50 |
| Power, W | 370 |
| Pump type | Eddy current |
| Maximum water lifting height, m | 30 |
| Maximum capacity, l / min | 45 |
| Diameter of inlet and outlet openings, in | 1 |
| Maximum suction depth, m | 9 |
| Pump body material | Cast iron |
| Hydraulic battery capacity, l | 20 |
| Permissible concentration of solid particles in the pumped water, g / m3 | 150 |
| Guarantee | 1 year |
| Weight, kg | 10.4 kg |
| Package dimensions | 0.455 × 0.496 × 0.278 m |
