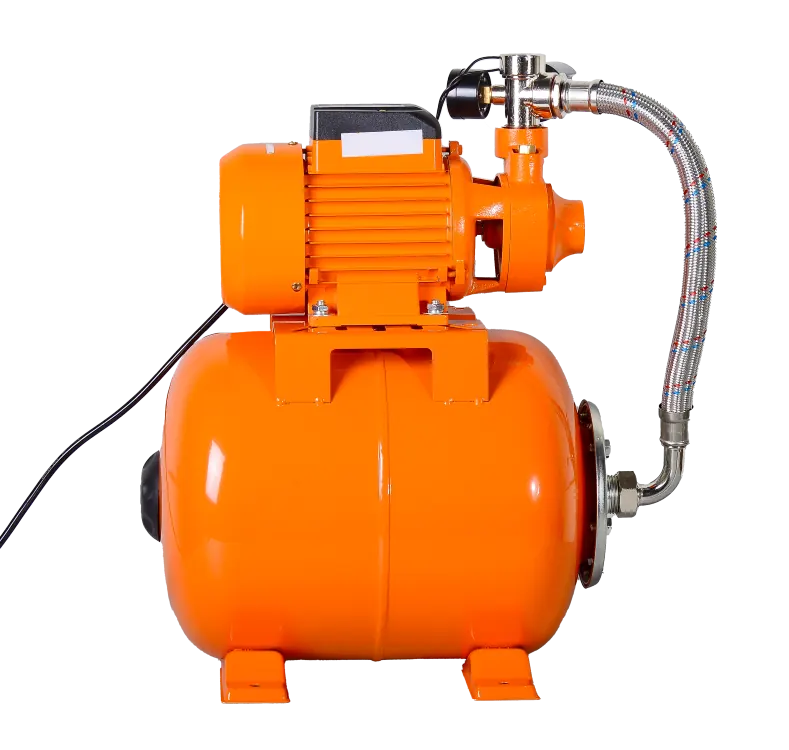

Vihr ASV-650-20Ch pumping station
Characteristics
| Mains voltage, V | 220-230 |
| Mains frequency, Hz | 50 |
| Power, W | 650 |
| Maximum water lifting height, m | 50 |
| Maximum productivity, l/min | 45 |
| Inlet and outlet diameter, inch | one |
| Maximum suction depth, m | 9 |
| Pump body material | Cast iron |
| Hydraulic battery capacity, l | 20 |
| Permissible concentration of solid particles in pumped water, g/m³ | 150 |
| Weight, kg | 11.6 kg |
| Packing dimensions | 0.45 × 0.27 × 0.46 m |
