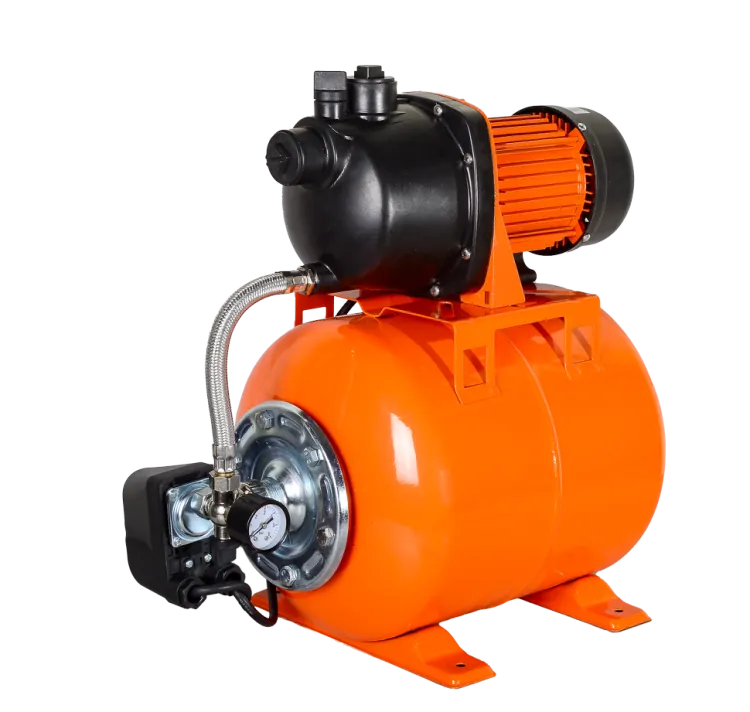

Vihr ASV-70-40 P-20

This pumping station is a convenient and reliable solution for providing constant access to water in cottages, country houses and other facilities where an independent source of water supply is required. Thanks to a 1200watt pump, the station creates a head of up to 40 m, ensuring water supply even over long distances or heights. The maximum capacity of the station is 70 l/min, which makes it suitable for meeting the needs of medium and large households. The inlet and outlet openings have a standard size of 1 inch, which makes it easy to connect to existing water supply systems and easy to install. The pump pumps water from a depth of up to 9 m, so it can be used with wells and boreholes.

Characteristics

Mains voltage, V 220-230
Mains frequency, Hz 50
Power, W 1200
Maximum productivity, l/min 70
Inlet and outlet diameter, inch one
Maximum suction depth, m 9
Pump body material Plastic
Hydraulic battery capacity, l twenty
Permissible concentration of solid particles in pumped water, g/m³ 150
Packing dimensions 0.345 × 0.215 × 0.328 m
Weight, kg 9.65 kg
