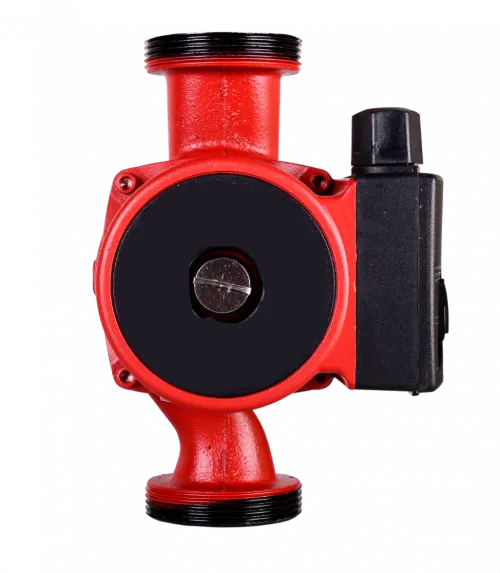

Vihr C-25-8 STANDARD

Circulation pumps are designed to circulate water in heating systems

Characteristics

Mains voltage, V 220-230
Mains frequency, Hz 50
Power, W 145/220/245
Head, m 5/7/8
Maximum productivity, l/min 130
Maximum pressure in the system, bar 10
Protection class IP44
Insulation class H
Temperature class TF 110
Pump cover material Cast iron
Engine body material Aluminum
Thread size on the pump, inch 1 1/2
Adapter nut size, inch one
Guarantee 1 year
Packing dimensions 0.2 × 0.2 × 0.2 m
Weight, kg 4.955 kg
