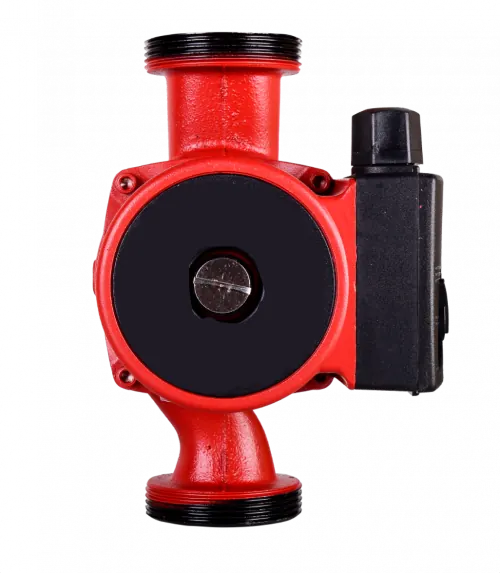

Vihr C-32-8 STANDARD

Circulation pumps are designed to circulate water in heating systems

Characteristics

Mains voltage, V	220-230
Mains frequency, Hz	50
Power, W	145/220/245
Head, m	5/7/8
Maximum productivity, l/min	170
Maximum pressure in the system, bar	10
Protection class	IP44
Insulation class	H
Temperature class	TF 110
Pump cover material	Cast iron
Engine body material	Aluminum
Thread size on the pump, inch	2
Adapter nut size, inch	1 1/4
Guarantee	1 year
Weight, kg	5.453 kg
Packing dimensions	0.195 × 0.195 × 0.195 m
