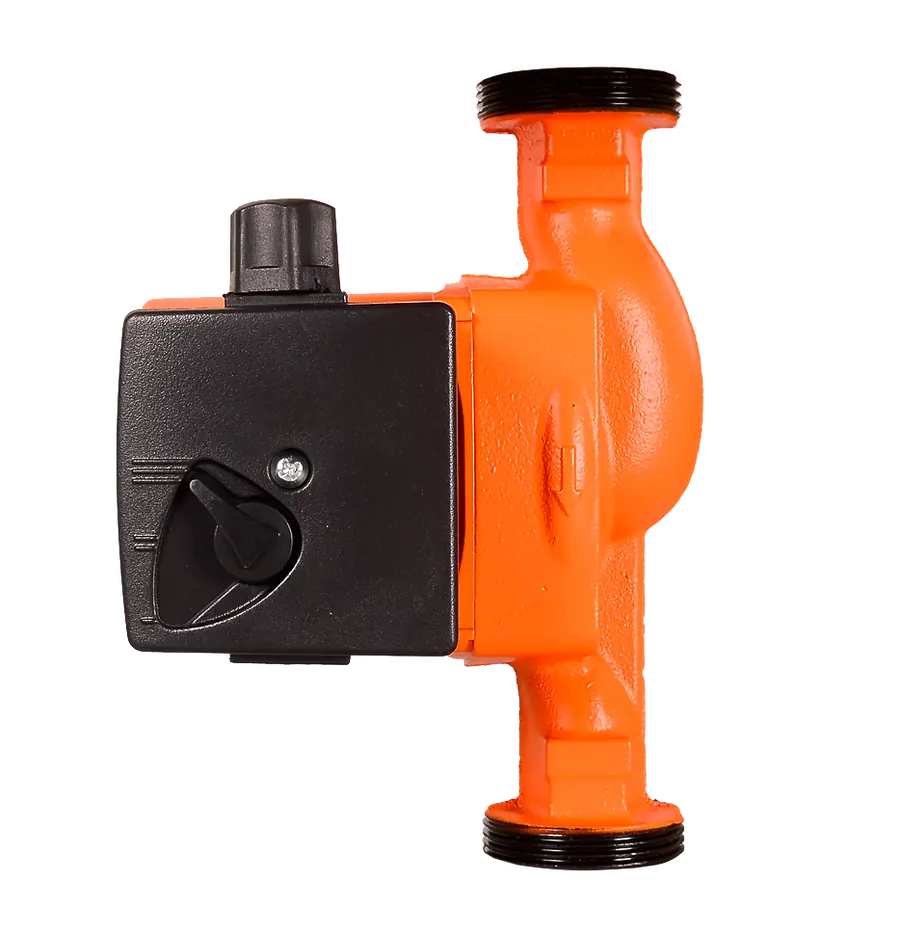

Vihr TsN-25-8 PROF

Circulation pumps are designed to circulate water in heating systems.

Characteristics

Mains voltage, V	220-230
Mains frequency, Hz	50
Power, W	145/220/245
Head, m	5/7/8
Maximum productivity, l/min	130
Maximum pressure in the system, bar	10
Protection class	IP 54
Insulation class	H
Temperature class	TF 110
Pump cover material	Cast iron
Engine body material	Aluminum
Thread size on the pump, inch	1 1/2
Adapter nut size, inch	one
Guarantee	3 years
Packing dimensions	0.199 × 0.199 × 0.199 m
Weight, kg	4.93 kg
