Circulation pumps

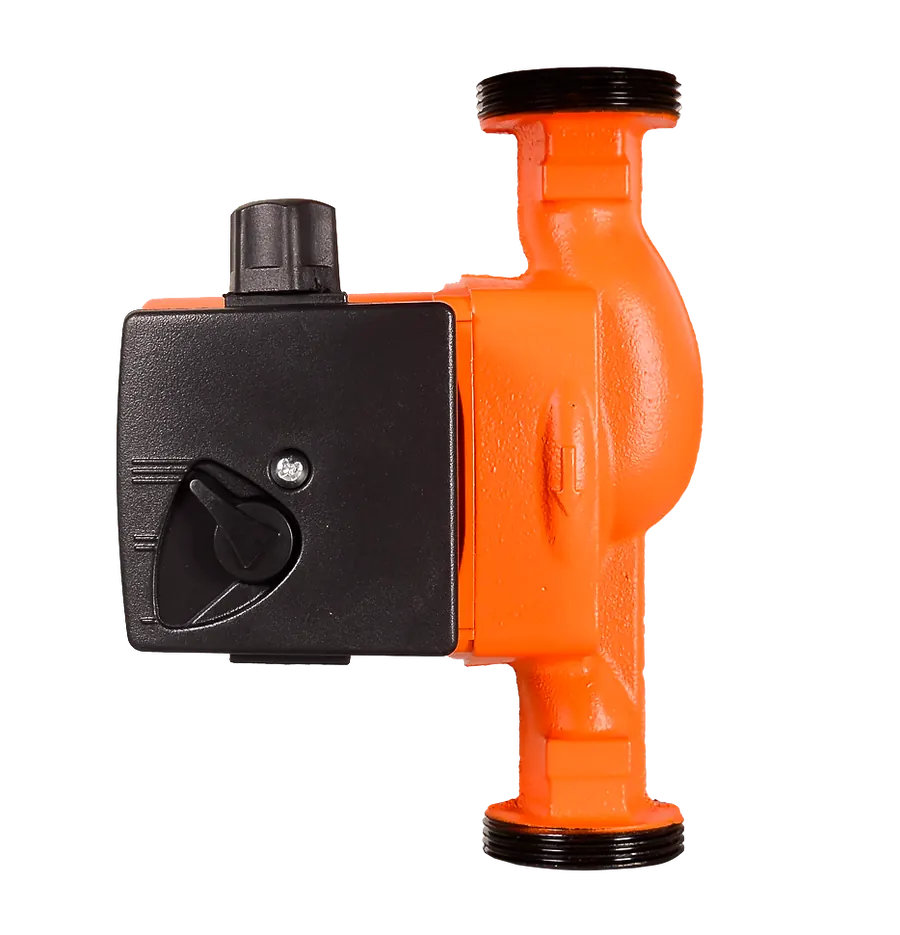

Circulation pump Vihr TsN-25-8 PROF
| Mains voltage, V | 220-230 |
| Mains frequency, Hz | 50 |
| Power, W | 145/220/245 |
| Head, m | 5/7/8 |
| Maximum productivity, l/min | 130 |
| Maximum pressure in the system, bar | 10 |
| Protection class | IP 54 |
| Insulation class | H |
| Temperature class | TF 110 |
| Pump cover material | Cast iron |
| Engine body material | Aluminum |
| Thread size on the pump, inch | 1 1/2 |
| Adapter nut size, inch | one |
| Guarantee | 3 years |
| Packing dimensions | 0.199 × 0.199 × 0.199 m |
| Weight, kg | 4.93 kg |
