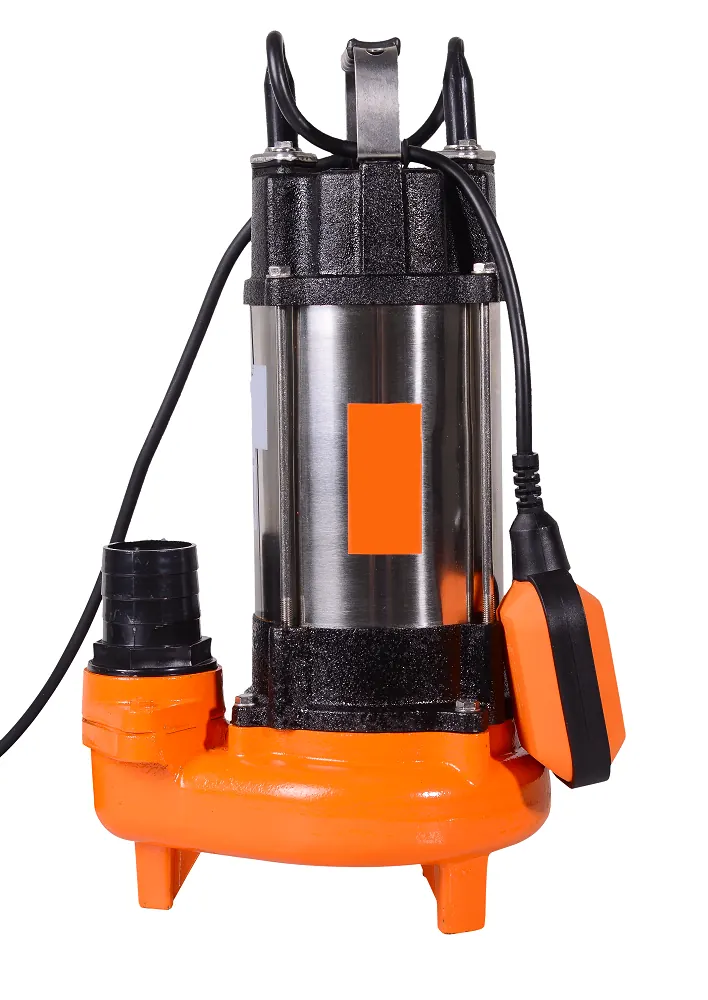

Vihr Fecal pump FN-450

FN-450 is used for fast and high-quality pumping of dirty water with large impurities from cesspools, septic tanks and drainage channels. With a power of 450 W, this pump is capable of lifting the pumped liquid to a height of up to 14.5 meters. In addition, the pump can work with different types of wastewater, including domestic and mixed wastewater containing fecal matter. In this case, the inclusions should not be larger than 42 mm in diameter, since the design does not provide for a knife.

The equipment is immersed in the bottom of the cesspool, well and maintains its stability there. The cast iron impeller can withstand intense loads and abrasive effects typical of working with fecal matter and solid inclusions. The unit is cooled by the surrounding water environment. The model has a float switch, which makes it possible to regulate the moment of switching the mechanism on and off.

Characteristics

Mains voltage, V 220-230
Mains frequency, Hz 50
Power, W 450
Type of water intake Lower
Maximum water lifting height, m 14.5
Maximum productivity, l/min 333
Outlet diameter, inch 2
Diameter of passed particles, mm 42
Knife (blade) No
Guarantee 1 year
Weight, kg 15.7 kg
Packing dimensions 0.45 × 0.24 × 0.185 m
