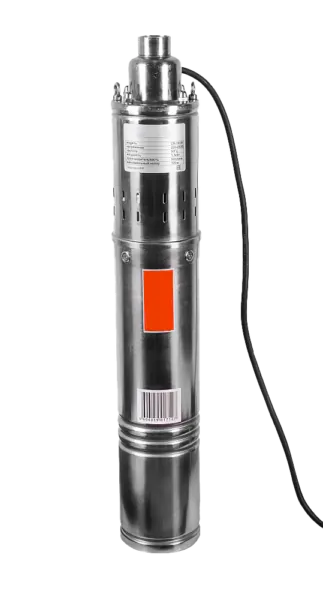

VIHR SN-100V

VIHR SN-100V is a powerful and reliable equipment that is used to lift water from a depth of up to 120 meters. With a power of 1100 watts, it effectively handles large amounts of work, as it has a capacity of up to 50 liters/min. It is equipped with an upper water intake, which minimizes the ingress of precipitation and sand, maintaining stable operation of the device and extending its service life. It can only be used if the sand content in the water does not exceed 50 g/m3. The impeller is made of chrome-plated steel, which increases its resistance to corrosion and mechanical damage. The pump has a diameter of 4 inches, so it can be installed in standard sized wells. At the same time, a 1inch diameter outlet ensures optimal water supply and compatibility with most water supply systems.

Characteristics

Supply network voltage, V 220-230
Power supply frequency, HZ 50
Power, W 1100
Type of water intake Upper level
Maximum water lifting height, m 120
Maximum capacity, l / min 50
Outlet diameter, in 1
Sand content not more than, g / m3 100
Pump diameter, in 4
Cable length, m 20
Condenser box No
Guarantee 1 year
Weight, kg 10.8 kg
Package dimensions 0.61 × 0.14 × 0.19 m
