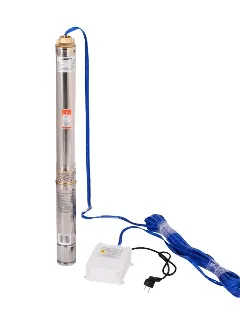

VIHR SN-60

VIHR SN-60 is designed for efficient lifting of water from deep wells. Its power is 800 watts, which ensures stable operation and high pressure up to 60 m. The maximum capacity of the pump reaches 50 liters/min, which makes it excellent for water supply to private homes, suburban areas and other facilities with moderate water consumption.

The diameter of the pump outlet is 1 inch, which makes it easy to connect it to standard pipelines. Water intake occurs in the middle of the pump, which helps to avoid the ingress of large particles and reduces the risk of clogging the system.

The pump impeller is made of glass—filled polyamide, a composite material that is highly durable and resistant to wear. This is especially important considering that the pump can be used at high concentrations of sand in groundwater: the permissible concentration of sand in water should not exceed 180 g/m3.

Characteristics

Supply network voltage, V 220-230
Power supply frequency, HZ 50
Power, W 800
Type of water intake In the middle of the pump
Maximum water lifting height, m 60
Maximum capacity, l / min 50
Outlet diameter, in 1
Sand content not more than, g / m3 180
Pump diameter, in 3
Cable length, m 20
Condenser box No
Guarantee 1 year
Weight, kg 12.2 kg
Package dimensions 1.1 × 0.011 × 0.2 m
