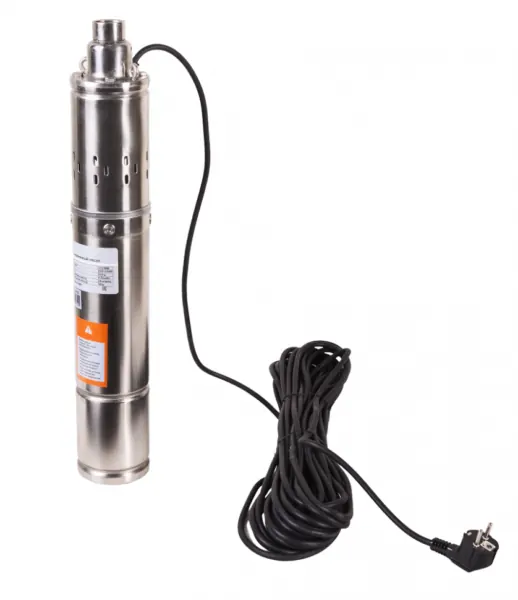

VIHR SN-90V
VIHR SN-90V is a reliable equipment that is used to lift water from wells and wells. The electric motor has a power of 550 watts, which allows for efficient operation at depths up to 90 m. The maximum output is 25 l/min, which makes it suitable for both domestic and small-scale household use. The borehole pump is equipped with an overhead water intake, which prevents sediment and sand from entering, and eliminates premature failure. The permissible sand content in the water should not exceed 50 g/m3. The pump impeller is made of chrome-plated steel, characterized by increased resistance to corrosion and mechanical damage, which ensures durability and reliable operation.
Characteristics
| Supply network voltage, V | 220-230 |
| Power supply frequency, HZ | 50 |
| Power, W | 550 |
| Type of water intake | Upper level |
| Maximum water lifting height, m | 90 |
| Maximum capacity, l / min | 25 |
| Outlet diameter, in | 1 |
| Sand content not more than, g / m3 | 100 |
| Pump diameter, in | 3,5 |
| Cable length, m | 20 |
| Condenser box | No |
| Guarantee | 1 year |
| Weight, kg | 8.8 kg |
| Package dimensions | 0.54 × 0.11 × 0.16 m |
